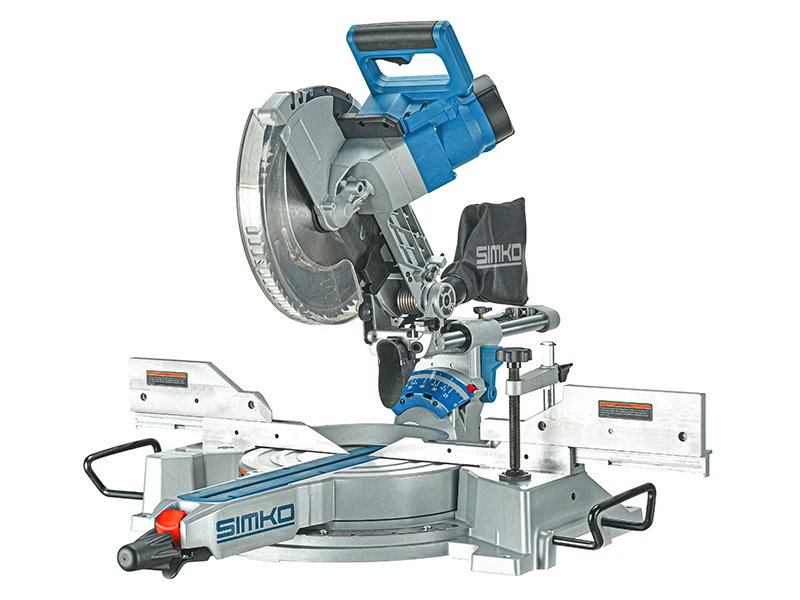

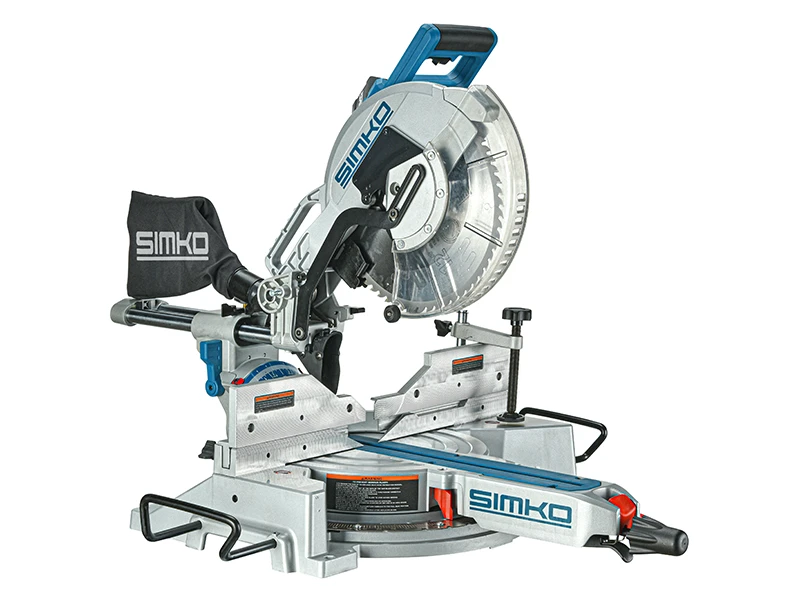

SM-12DSA

Miter Saw

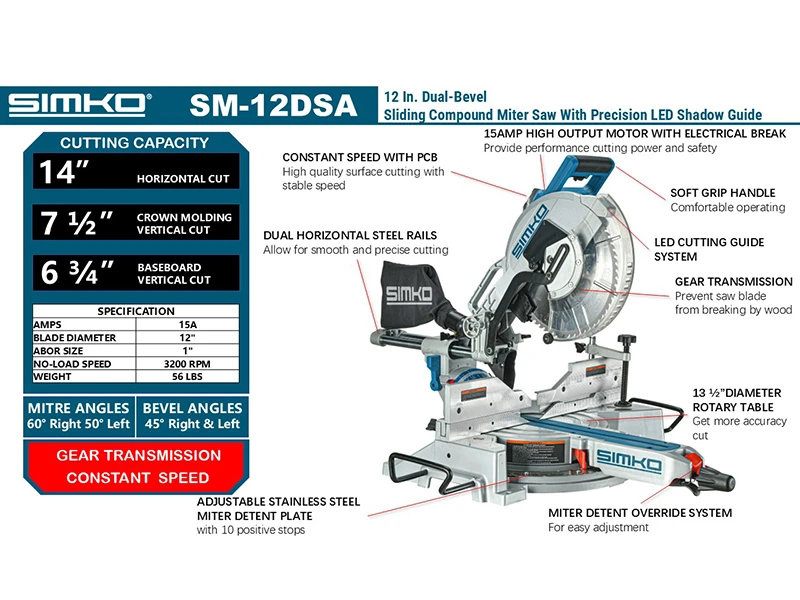

● 15 amp, 3800 rpm motor delivers extended power and durability.

● Cam lock miter handle with detent override deliver quick and accurate miter angles.

● Adjustable stainless steel miter detent plate with 11 positive stops Improves productivity and ensures cutting accuracy.

● Precise miter system and machined-base fence support optimize cutting accuracy.

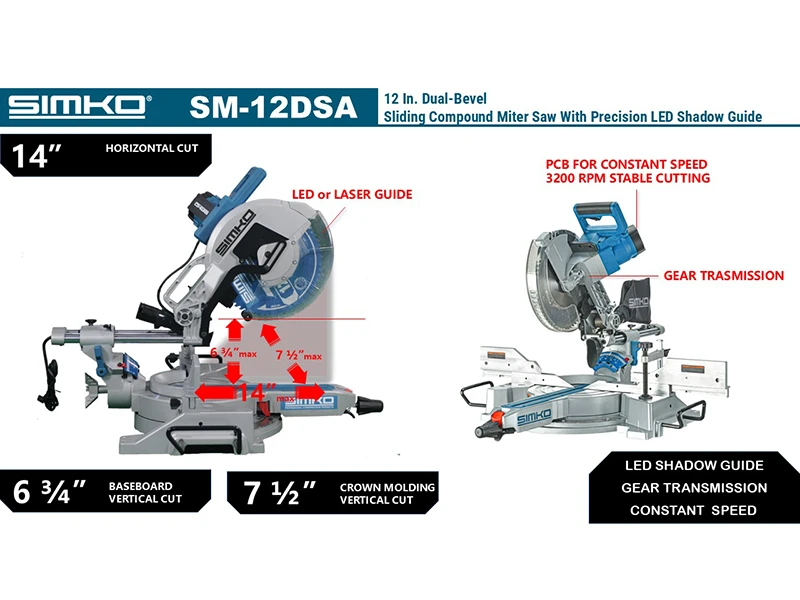

● Tall sliding fences support crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts.

● Innovative gearbox and bevel gear driven increases vertical cutting capacity.

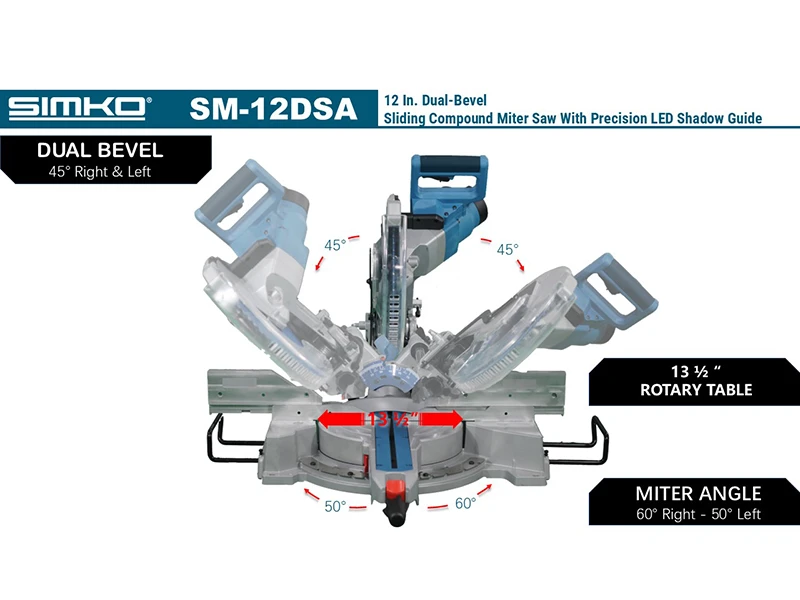

●Double bevel design allows saw to bevel left and right 0° - 48° with positive stops at 0°, 33.9°, 45°, and 48° both left and right allowing user to flip the saw not the material.

●Exclusive back-fence design cuts dimensional lumber 2" x 10" at 90° and 2" x 8" at 45°.

●0-50° left and right miter capacity for greater versatility.


Get in touch with us

Let us contact you for more information, availability and pricing.

Contact me
Technical Specification
Rated voltage220-240/120V
Frequency50/60Hz
Rated input1650W/15AMPS
No load speed3200rpm
BoreOptional, 25.4mm(1 inch), 30mm


Size and Weight
Weight(based on EPTA)

25.4kg/56Lbs

Size-


Packing Data
Unit quantity1pcs
Size875x530x550mm
G.W/N.W29/26kg
Loading QTY in 20ft container112


Accessories Included
Dust Bag1
Dust bag adapter1
Blade wrench1
Carbide blade1
Carbon brush

1
