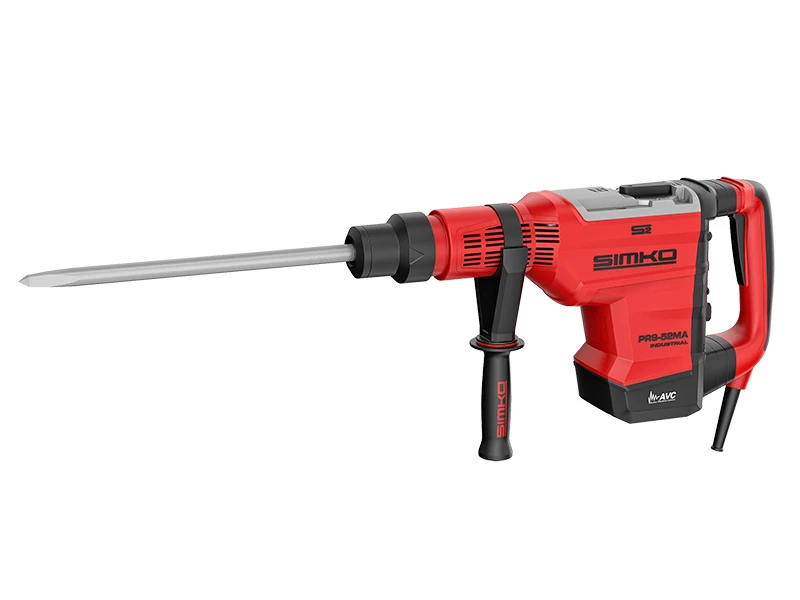

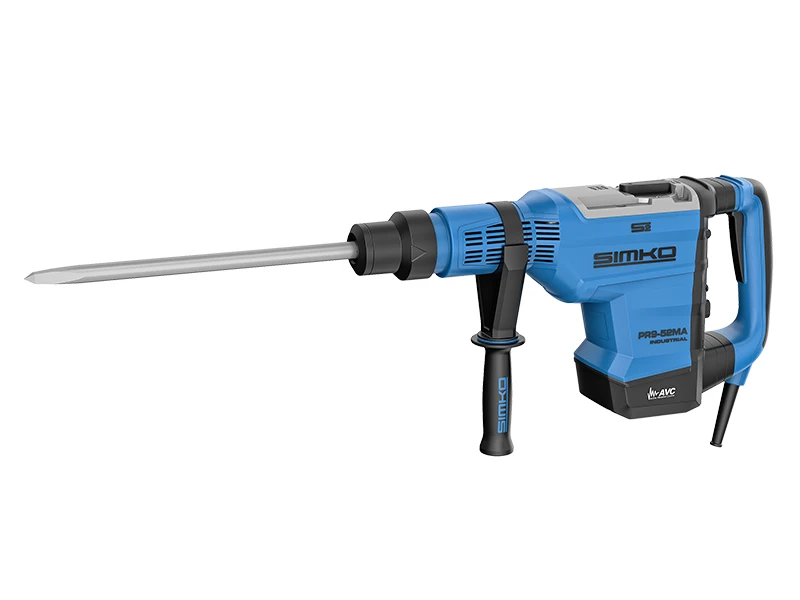

PH9-18MA
Demolition Hammer
● Chiseling angle adjustable by 12-steps lock; enabling you to adapt it to each work situation. (e.g. when using tile chisels)
● Anti-Vibration System, reduced fatigue.
● Lock-on switch and Ergonomic handle with soft grip.
● 6-steps setting wheel and constant Speed Control for variable adjustment of the speed and impact rate for optimum performance .
● Indicator of power supply.
● Indicator of Carbon Brush maintenance.
● Low vibration & noise design with high impact energy.
● 360°Auxiliary handle.
Get in touch with us
Let us contact you for more information, availability and pricing.
E-mail: [email protected] [email protected]
Tel: +86-579-8729 2869 / +86-579-8729 8259
Technical Specification
| Rated voltage | 220-240/120V |
| Frequency | 50/60Hz |
| Rated input | 1500W/14AMPS |
| Impact rate | 1380-2760bpm/min |
| Impact energy | 2-15J |
| Tool holder | SDS-Max |
Size and Weight
| Weight(based on EPTA) | 8.5kg |
| Size | 560x280x112mm |
Packing Data
| Unit quantity | 1pcs |
| Size | 595x157x430mm |
| G.W/N.W | 15.5/14.5kg |
| Loading QTY in 20ft container | 720 |
Accessories Included
| Auxiliary handle | (ID 26.02.0353） |
| Carbon brush | (ID 24.03.0071 for 220V）/ (ID 24.03.0072 for 120V） |
| Spare grease tube | (ID 30.12.0001 for 30g） |
| Tine chisel | (ID 02.01.0033);Φ18×350mm（SDS-Max） |
| Flat chisel | (ID 02.01.0034);Φ18×350mm（SDS-Max） |
| Carrying case (Spare part No) | (ID 88302054 IMC Metal locker / Plastic locker) / (ID 88302070 BMC) |
